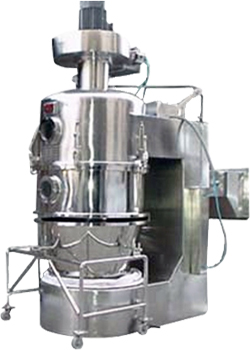

The precision and easy operations of our Fluid Bed Dryer have named us as the best Manufacturer, Exporter and Supplier in India. The Fluid Bed Dryer, offered by us, is ideal for the rapid and even drying of chemical, pharmaceutical and food products. Our Fluid Bed Dryer is available at the market leading prices.

Salient Features

• 65% open perforated air distribution plates along with Dutch weave mesh
• On line sampling Port
• 2.5kg. to 500kg. batch capacity
• Top Spry Granulation
• Explosion relief disc
• All contact parts are S.S. 316 as per GMP Standard
• Uniform Drying at low temperature
• Intrinsically safe earthing system ensures complete elimination of static charge
• Fan motor unit & Filtration unit can be placed in remote areas
• Heating mode electrical / steam / thermic fluid
• Top mounted pneumatic cylinder (directly coupled ) for shaking (without wire rope system)
• Minimum handling more Hygienic
• Pneumatically operated inflatable seals provided for filter bag and product container sealing with pressure switches & FRL to ensure fail safe operation

Safety

• Solid Flow monitor
• To prevent the product losses due to rupture of filter bag
• Ensures complete elimination of static charge
• Explosion vent provided with rupture disk
• Positive Earthing Device

Applications

• Chemicals
• Pharmaceutical
• Food products

Documentation

• Fluid Bed Dryer comes along with all documentation like DQ, IQ, OQ, and FAT as a part of standard procedure

TECHNICAL SPECIFICATIONS

Model	SSE FBD 10	SSE FBD 30	SSE FBD 60	SSE FBD 120	SSE FBD 150	SSE FBD 200	SSE FBD 250	SSE FBD 300
Bowl Volume (Liters)	35	110	200	425	500	625	780	925
Batch Size (Kgs)	10-15	30-40	60-75	120-150	150-180	200-230	250-280	300-330
Heating Load : (kw) For Electrical Heating	6	18	36	54*	60*	*	*	*
Approx. steam Consumption Kgs/hr. (Steampressure 3.5 Kg. /cm2)	15	25	50	100	130	170	200	250
Motor (H.P.)	2	5	10	15	20	20	25	30
Drying Temp C*	50-80	50-80	50-80	50-80	50-80	50-80	50-80	50-80
Height H1 (Approx) mm	1600	1900	2200	2550	2600	2800	3000	3100
Height H2 (Approx) mm	2000	2250	3000	3500	3500	3900	4000	4200
Width (Approx) mm	1050	1400	1550	1800	1850	2000	2100	2150
Lenth (Approx) mm	800	1250	1500	1700	1700	2000	2100	2200
